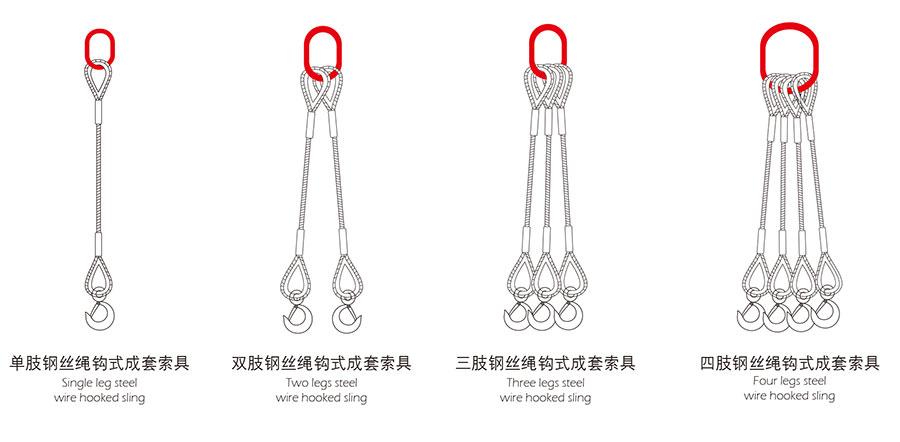

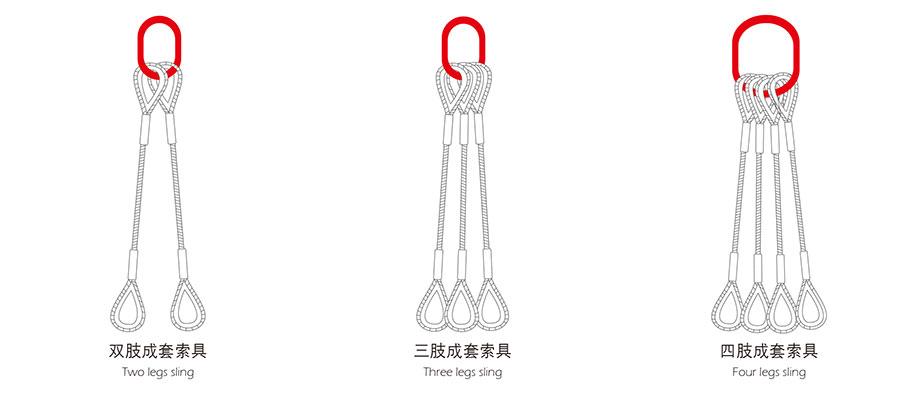

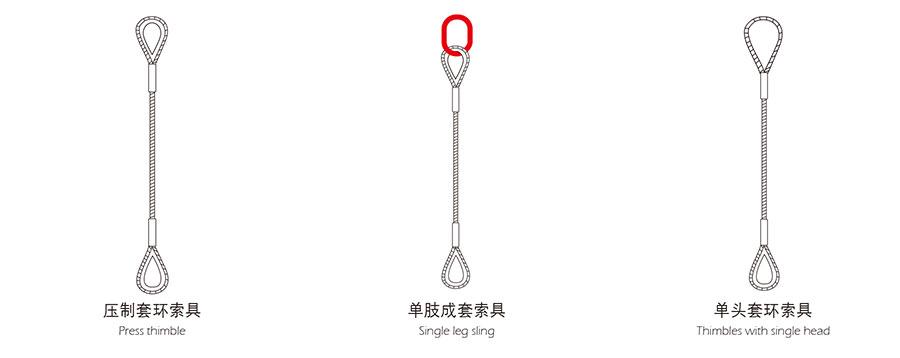

成套索具
Complete Rigging
|
钢丝绳直径 Rope Diameter MM |
单肢索具载荷 Single-limb rigging load (T) |
双肢索具载荷 Pairs of limbs rigging load α≤90 (T) |
双 肢 Pairs of limbs 90≤α≤120 (T) |
三肢或四肢 3 limb or limbs α≤90 (T) |
三肢或四肢 3 limb or limbs 90≤α≤120 (T) |
|
6 |
0.28 |
0.4 |
0.3 |
0.6 |
0.4 |
|
7 |
0.38 |
0.5 |
0.4 |
0.8 |
0.6 |
|
8 |
0.5 |
0.7 |
0.5 |
1.0 |
0.7 |
|
9 |
0.7 |
1 |
0.7 |
1.5 |
1 |
|
11 |
0.9 |
1.3 |
0.9 |
1.7 |
1.3 |
|
12 |
1.2 |
1.7 |
1.2 |
2.5 |
1.8 |
|
13 |
1.3 |
1.8 |
1.3 |
3.1 |
2.2 |
|
14 |
1.7 |
2.4 |
1.7 |
3.5 |
2.5 |
|
15 |
1.8 |
2.5 |
1.8 |
3.8 |
2.7 |
|
16 |
2.2 |
3.1 |
2.2 |
4.6 |
3.3 |
|
17.5 |
2.8 |
3.9 |
2.8 |
5.8 |
4.2 |
|
19.5 |
3.2 |
4.5 |
3.2 |
6.7 |
4.8 |
|
21.5 |
3.8 |
5.3 |
3.8 |
8 |
5.7 |
|
24 |
4.5 |
6.3 |
4.5 |
9.5 |
6.8 |
|
26 |
5.3 |
7.4 |
5.3 |
11.1 |
8 |
|
28 |
6.2 |
8.7 |
6.2 |
13 |
9.3 |
|
30 |
7.9 |
11 |
7.9 |
16.6 |
11.8 |
|
32.5 |
8.1 |
11.3 |
8.1 |
17 |
12.2 |
|
36.5 |
10.2 |
14.3 |
10.2 |
21.4 |
15.3 |
|
39 |
12.6 |
17.6 |
12.6 |
26.5 |
18.9 |
|
43 |
15.3 |
21.4 |
15.3 |
32.1 |
23 |
|
47.5 |
18.2 |
25.5 |
18.2 |
38.2 |
27.3 |
|
52 |
21.3 |
29.8 |
21.3 |
44.7 |
32 |
|
56 |
24.7 |
32 |
24.7 |
51. |
36.5 |
|
60.5 |
28.4 |
39.8 |
28.4 |
59.6 |
42.6 |
|
65 |
32.7 |
45.7 |
32.7 |
68.7 |
49 |
|
70 |
40.0 |
55.9 |
40.0 |
83.9 |
59.9 |
|
74 |
44.6 |
62.5 |
44.6 |
93.7 |
67.0 |
|
80 |
52.2 |
73.1 |
52.2 |
109.6 |
78.3 |
|
84 |
57.6 |
80.6 |
57.6 |
121.0 |
86.4 |
|
90 |
66.1 |
92.5 |
66.1 |
138.7 |
99.1 |
|
96 |
75.2 |
105.3 |
75.2 |
158.0 |
112.9 |
|
100 |
81.7 |
114.4 |
81.7 |
171.6 |
122.6 |
|
106 |
91.8 |
128.5 |
91.8 |
192.8 |
137.7 |
