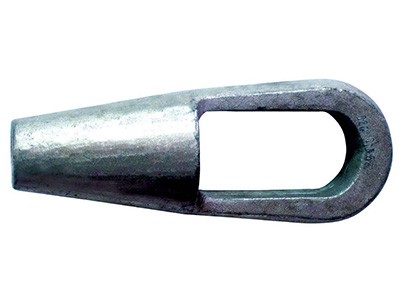

美式闭式索节
Closed sockets
|
绳 Rope In |
绳 径 Rope diameter |
A
mm |
B
mm |
C
mm |
D
mm |
F
mm |
G
mm |
H
mm |
J
mm |
K
mm |
L
mm |
单件重量 Single Weight （kg） |
|
1/4 |
6 |
114.30 |
12.70 |
38.10 |
22.35 |
9.65 |
17.53 |
39.62 |
57.15 |
12.70 |
44.45 |
0.23 |
|
5/16--3/8 |
8-9 |
123.95 |
15.75 |
42.93 |
24.64 |
12.70 |
20.57 |
42.93 |
57.15 |
17.53 |
50.80 |
0.34 |
|
7/16--1/2 |
11-12 |
138.18 |
17.53 |
50.80 |
29.64 |
14.22 |
23.88 |
47.75 |
63.50 |
22.53 |
57.15 |
0.68 |
|
9/16--5/8 |
14-16 |
160.27 |
20.57 |
66.80 |
35.81 |
17.53 |
28.45 |
60.45 |
76.20 |
25.40 |
63.50 |
1.13 |
|
3/4 |
19 |
192.02 |
26.92 |
76.20 |
42.16 |
20.57 |
31.75 |
69.85 |
90.42 |
31.75 |
76.20 |
1.92 |
|
7/8 |
22 |
222.25 |
31.75 |
92.20 |
47.75 |
23.88 |
38.10 |
81.55 |
101.60 |
38.10 |
88.90 |
3.29 |
|
1 |
25 |
250.95 |
35.05 |
104.90 |
58.42 |
28.70 |
44.45 |
95.25 |
112.78 |
44.45 |
101.60 |
4.76 |
|
1--1/8 |
28 |
279..40 |
38.10 |
114.90 |
65.02 |
31.75 |
50.80 |
104.90 |
127.00 |
50.80 |
114.30 |
6.46 |
|
11/4--3/8 |
31.5-35 |
307.85 |
41.40 |
134.62 |
71.37 |
38.10 |
57.15 |
120.65 |
139.70 |
57.15 |
127.00 |
8.96 |
|
1--1/2 |
38 |
354.08 |
49.28 |
135.38 |
81.03 |
41.40 |
69.85 |
133.35 |
152.40 |
63.50 |
152.40 |
13.25 |
|
1--5/8 |
42 |
384.30 |
54.10 |
146.05 |
82.55 |
44.45 |
76.20 |
139.70 |
165.10 |
69.85 |
165.10 |
16.32 |
|
13/4--17/8 |
45-47.5 |
438.15 |
55.63 |
171.45 |
95.25 |
50.80 |
79.50 |
162.05 |
190.50 |
76.20 |
192.02 |
25.98 |
|
2--21/8 |
50-53 |
495.30 |
61.98 |
193.80 |
111.25 |
57.15 |
95.25 |
187.45 |
215.90 |
82.55 |
217.42 |
35.84 |
|
21/4--23/8 |
57-60 |
536.70 |
66.80 |
215.90 |
127.00 |
63.50 |
101.60 |
209.55 |
228.60 |
92.20 |
241.30 |
47.64 |
|
21/2--25/8 |
63-66 |
596.90 |
79.25 |
241.30 |
139.70 |
73.15 |
114.30 |
234.95 |
247.65 |
101.60 |
269.75 |
63.50 |
|
23/4--27/8 |
70-73 |
644.65 |
79.25 |
273.05 |
158.75 |
79.25 |
123.95 |
258.83 |
279.40 |
123.95 |
285.75 |
99.80 |
|
3--31/8 |
76-80 |
685.80 |
82.55 |
292.10 |
171.45 |
85.85 |
133.25 |
292.10 |
304.80 |
133.35 |
298.45 |
125.20 |
|
31/4--33/8 |
82-85 |
742.95 |
101.60 |
311.15 |
184.15 |
91.95 |
146.05 |
311.15 |
330.20 |
146.05 |
311.15 |
141.98 |
|
31/2--35/8 |
89-92 |
787.40 |
101.60 |
330.20 |
196.85 |
98.55 |
165.10 |
330.20 |
355.60 |
158.75 |
330.20 |
181.44 |
|
33/4--4 |
95-100 |
844.55 |
107.95 |
361.95 |
215.90 |
107.95 |
184.15 |
361.95 |
381.00 |
177.80 |
355.60 |
245.85 |
